ParentAttribute Class

Assembly: CodeEffects.Rule.Common.dll
Namespace: CodeEffects.Rule.Common.Attributes

Summary

Gets or sets the display name of the public non-static property of a value type or of a field of a reference type declared in the source object.

Syntax

[AttributeUsage(AttributeTargets.Property | AttributeTargets.Field, AllowMultiple = true, Inherited = false)]
public class ParentAttribute : System.Attribute, CodeEffects.Rule.Common.Attributes.IDescribableAttribute

Properties

Remarks

If a source object contains two or more reference-type properties, those properties can be of the same type. For example, consider a Company class that declares two properties of type Address: ShippingAddress and BillingAddress:

namespace TestLibrary
{
	public class Company
	{
		public Address ShippingAddress { get; set; }
		public Address BillingAddress { get; set; }
	}

	public class Address
	{
		public string Street { get; set; }
		public string City { get; set; }
		public string PostalCode { get; set; }
	}
}

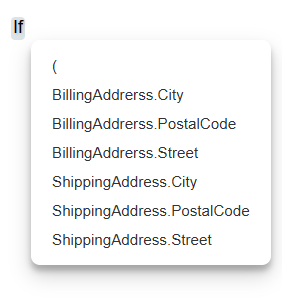

Code Effects Rule Editor uses dot notation to display the default field names of reference types in the Rule Area. If the Company class is used as the source object, the fields menu will appear as follows:

While this may be acceptable for internal solutions, you will likely want to assign meaningful display names to the rule fields to make the experience easier for business users. However, simply setting the DisplayName parameter of the FieldAttribute on each Address field...

[Field(DisplayName = "Street Address")]
public string Street { get; set; }

…won’t work because Rule Editor cannot determine which property should be labeled Street Address when it scans the source object while preparing the Rule Area — ShippingAddress.Street or BillingAddress.Street. If the Street property is modified as shown in the example above, Rule Editor will simply use the first property of the Company class that contains the field Street (the ShippingAddress property in this case) and ignore all other occurrences. This is the default behavior.

Use the ParentAttribute to resolve this issue. Its behavior is easy to understand from the code sample below:

using CodeEffects.Rule.Common.Attributes;

namespace TestLibrary
{
	public class Company
	{
		public Address ShippingAddress { get; set; }
		public Address BillingAddress { get; set; }
	}

	public class Address
	{
		[Parent("ShippingAddress", "Shipping Street")]
		[Parent("BillingAddress", "Billing Street")]
		public string Street { get; set; }

		[Parent("ShippingAddress", "Shipping City")]
		[Parent("BillingAddress", "Billing City")]
		public string City { get; set; }

		[Parent("ShippingAddress", "Shipping Postal Code")]
		[Parent("BillingAddress", "Billing Postal Code")]
		public string PostalCode { get; set; }
	}
}

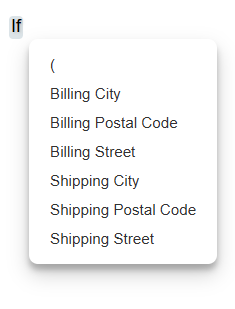

Run the editor with this version of the Company class as the source object to see the difference:
